Electronic Supplement to
Empirical Improvements for Estimating Earthquake Response Spectra with Random-Vibration Theory
by
David M. Boore and Eric M. Thompson
This Electronic Supplement contains links to files used by the SMSIM software in simulating the ground motions
for the various cases discussed in the text. In addition, a table is given with information about the model used for each figure,
and additional figures illustrating models not given in the text, for western North America, are provided. A table containing abbreviations used in this
electronic supplement is also given (the abbreviations are also defined in the text).
Tables.
- Table S1.A table of definitions used in this electronic
supplement.
- Table S2.A table listing the model, low-cut filter corner,
and equation used to compute Drms for the following figures for WNA parameters.
The table is given as a comma separated variable file for easy importation into spreadsheet programs.
The SMSIM parameter files (with "params" as the file extension) for the two ENA and two WNA models, as well as tables
containing coefficients for equation (10) in the text,
are in the zip file smsim_input_files.zip. The coefficients were derived from
the ENA and the WNA SCF models with no low-cut filter.
The files are in ascii format.
The parameter files
are for single corner frequency source spectra("SCF" in the file names) and
double corner frequency source spectra ("AB95" and "AS00" in the file names)
for ENA and WNA. All parameter files include the names for the files containing the
BT12 coefficients for Drms (the particular set of coefficients or combination of coefficients
is indicated by the last entry in the "!rv params:" parameters input line).
Shaded contour plots showing TD/RV ratios for two WNA models, with and without low-cut filtering (see Table S2).

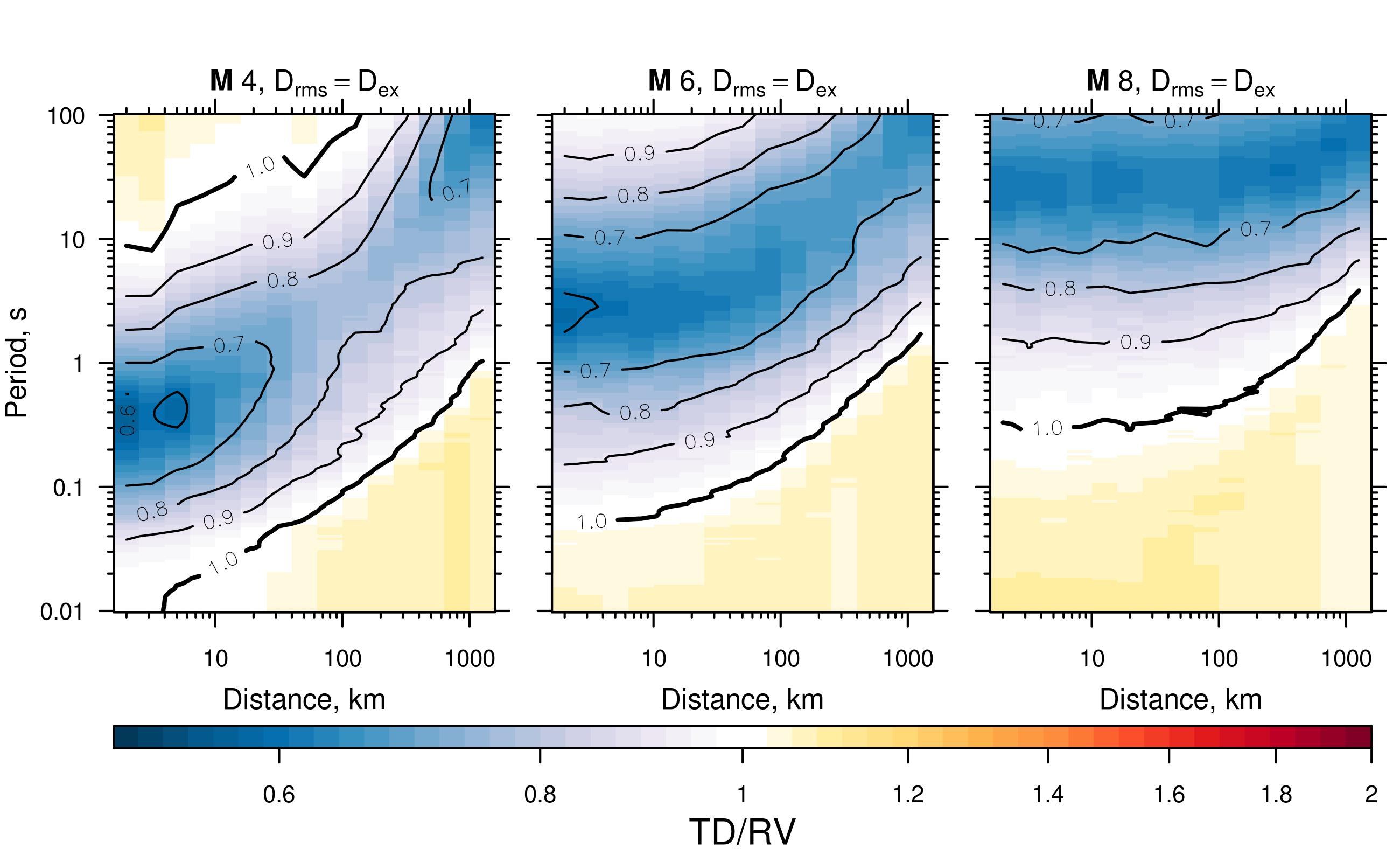

- Figure S1.TD/RV shaded contour plot, WNA SCF, no low-cut,
Drms=Dex.

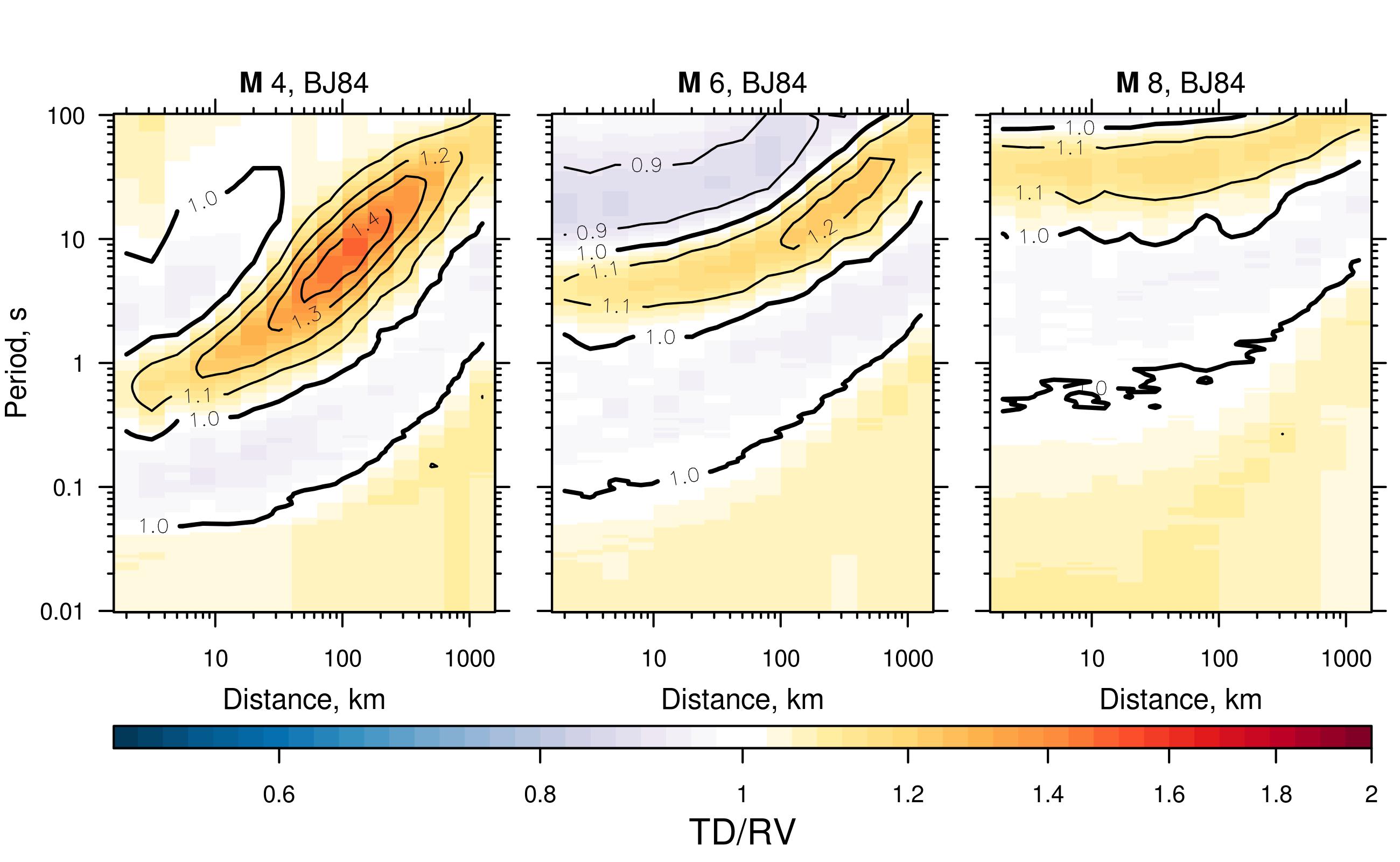

- Figure S2.TD/RV shaded contour plot, WNA SCF, no low-cut,
Drms from BJ84 equation.

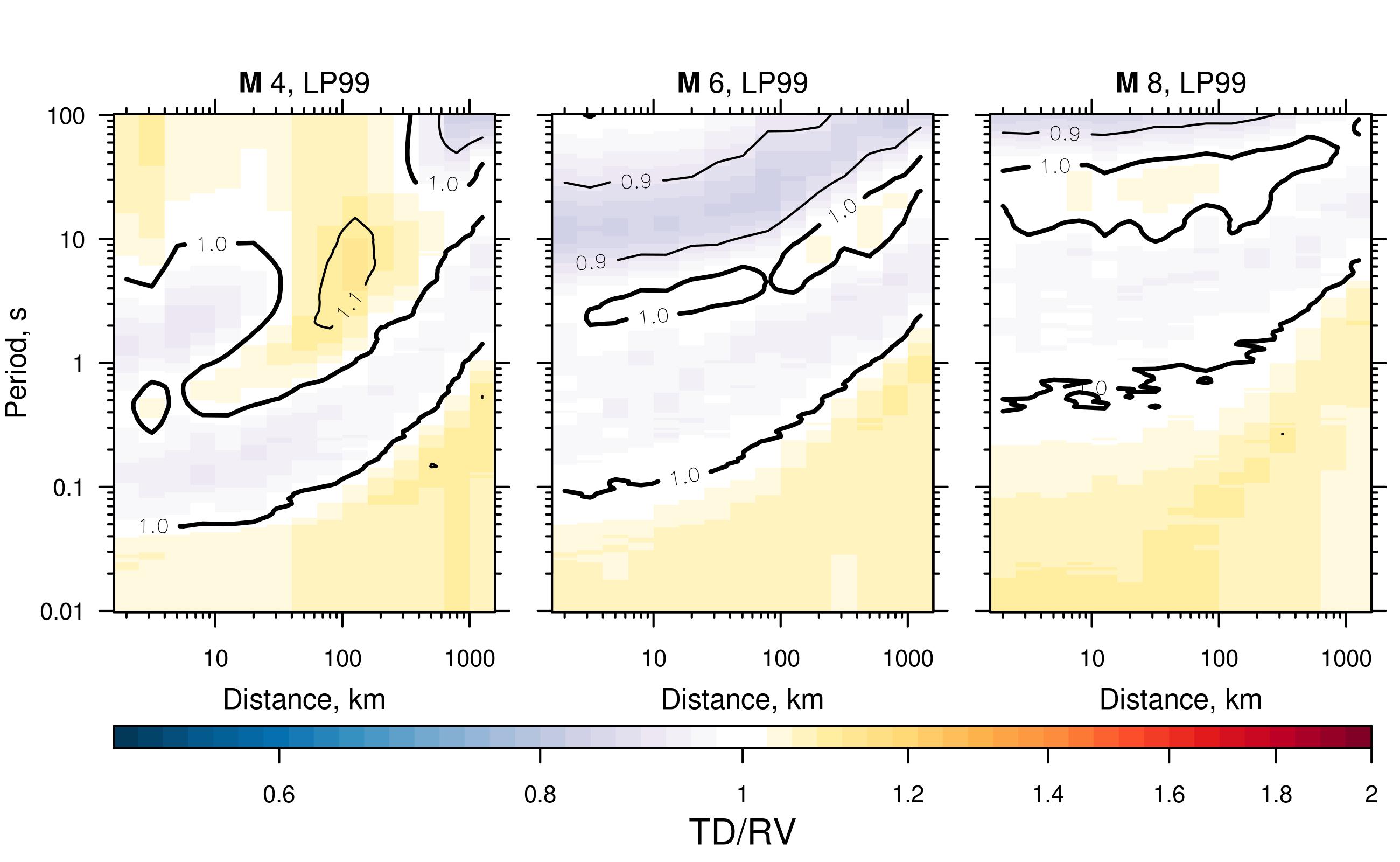

- Figure S3.TD/RV shaded contour plot, WNA SCF, no low-cut,
Drms from LP99 equation.

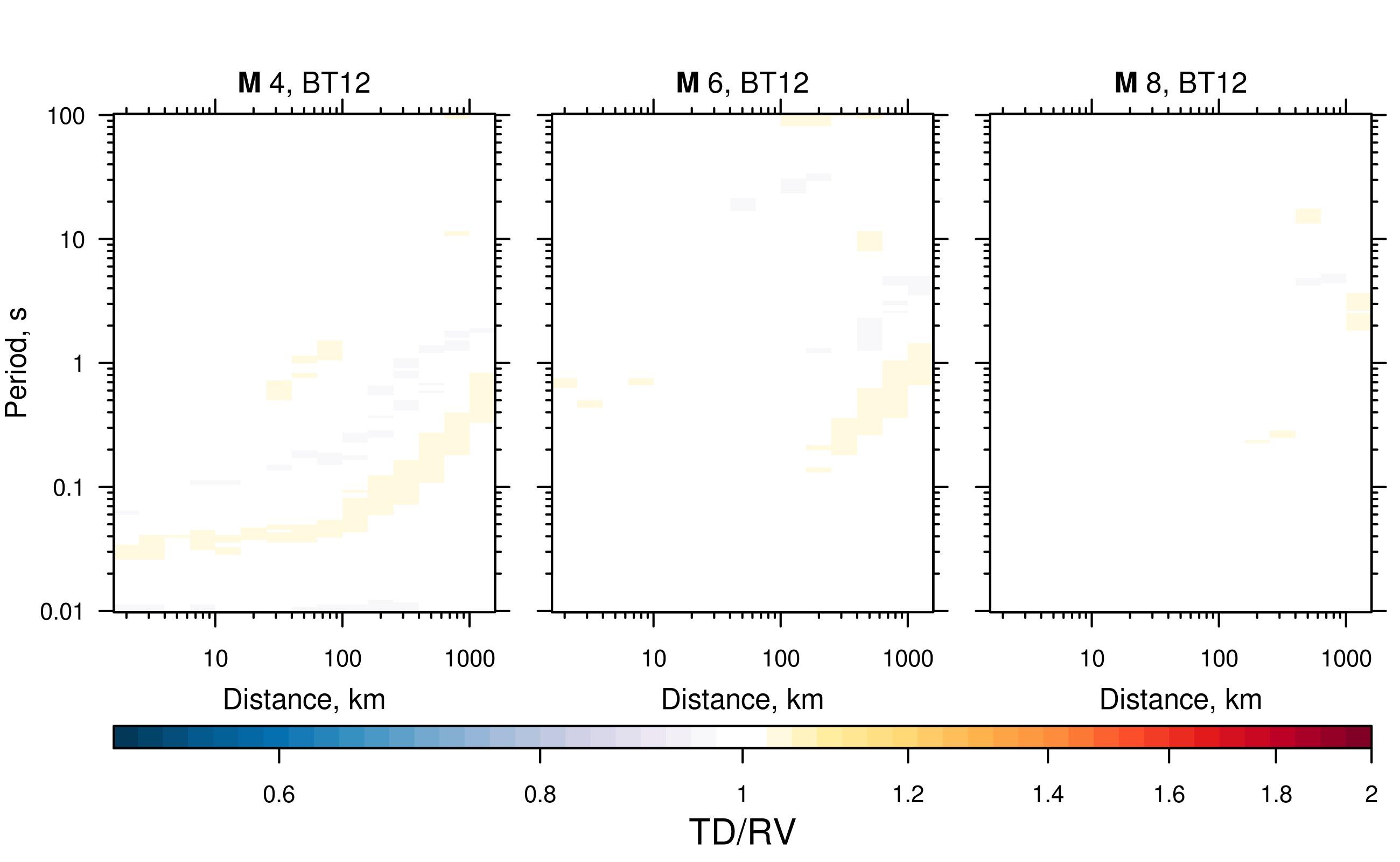

- Figure S4.TD/RV shaded contour plot, WNA SCF, no low-cut,
Drms from BT12 equation, using coefficients from the WNA SCF model.

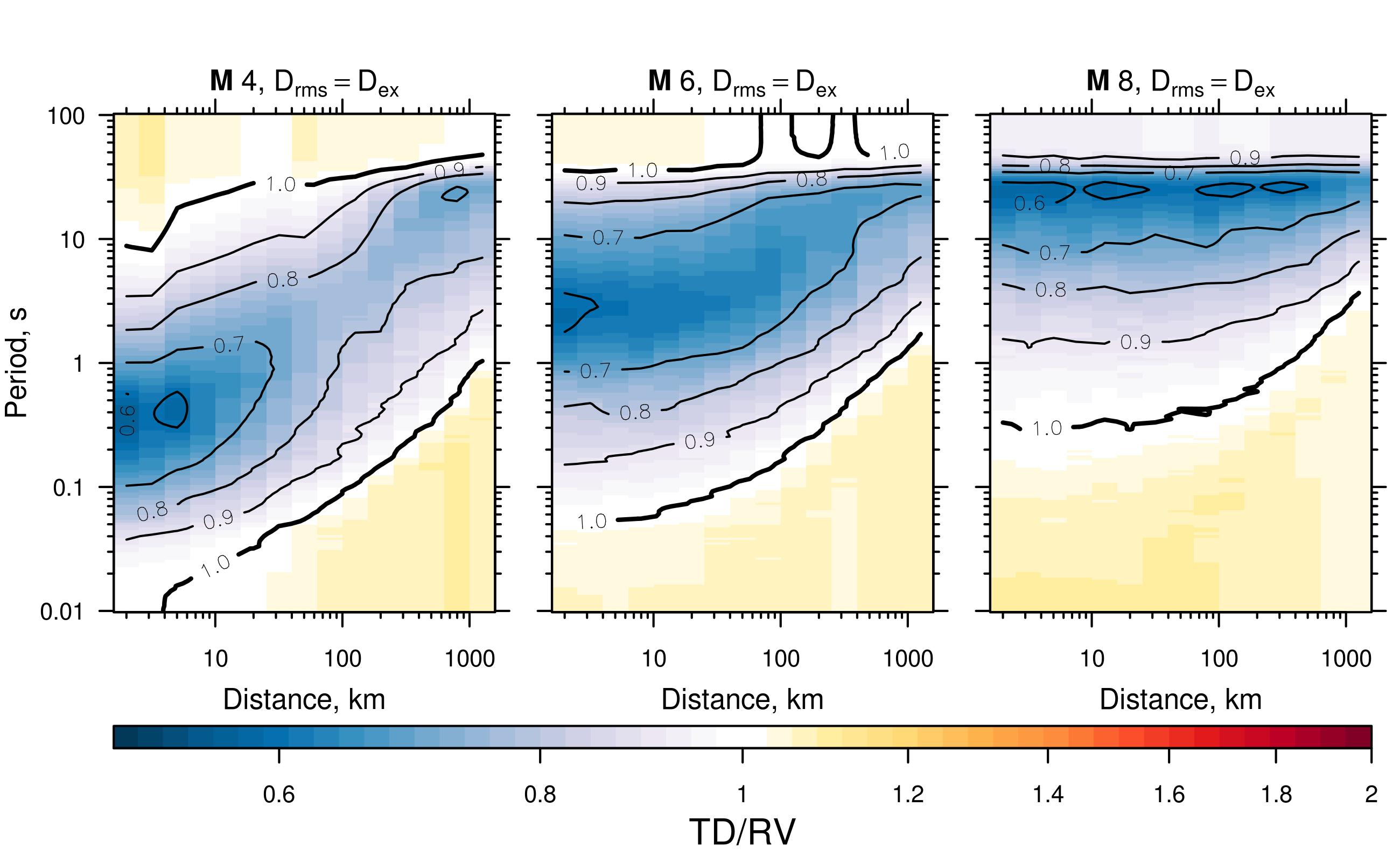

- Figure S5.TD/RV shaded contour plot, WNA SCF,
flc=0.03 Hz.
Drms=Dex.

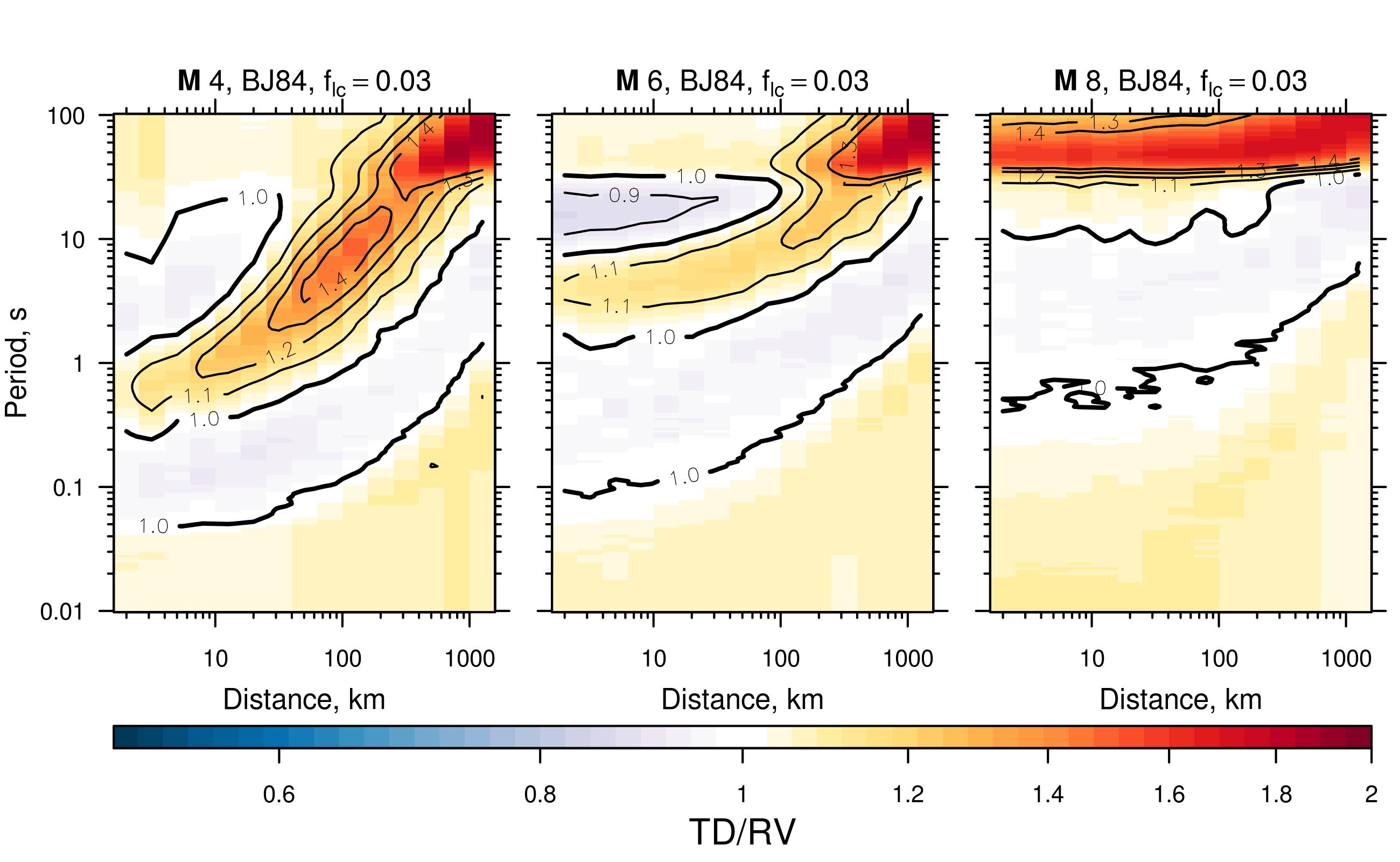

- Figure S6.TD/RV shaded contour plot, WNA SCF,
flc=0.03 Hz.
Drms from BJ84 equation.

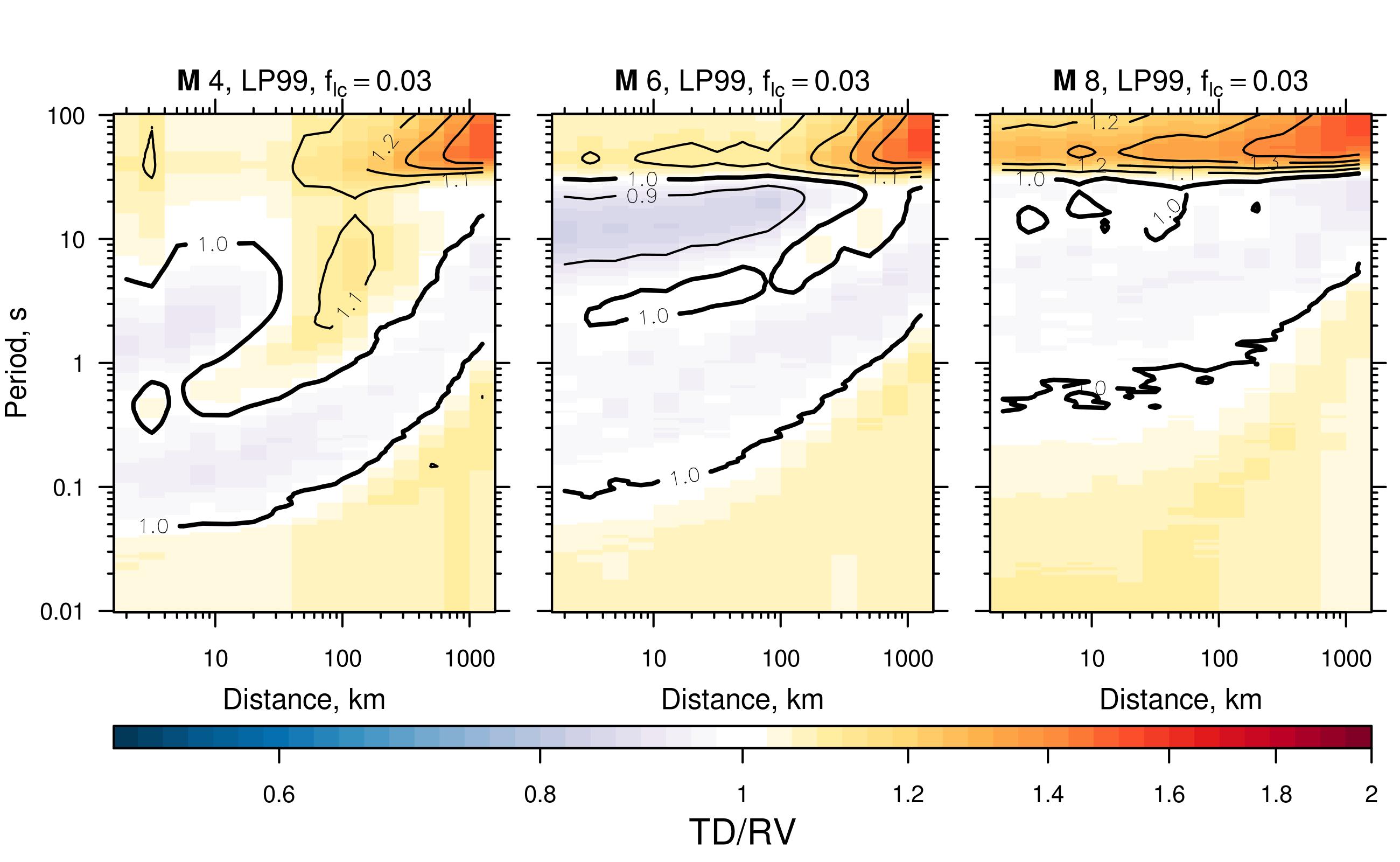

- Figure S7.TD/RV shaded contour plot, WNA SCF,
flc=0.03 Hz.
Drms from LP99 equation.

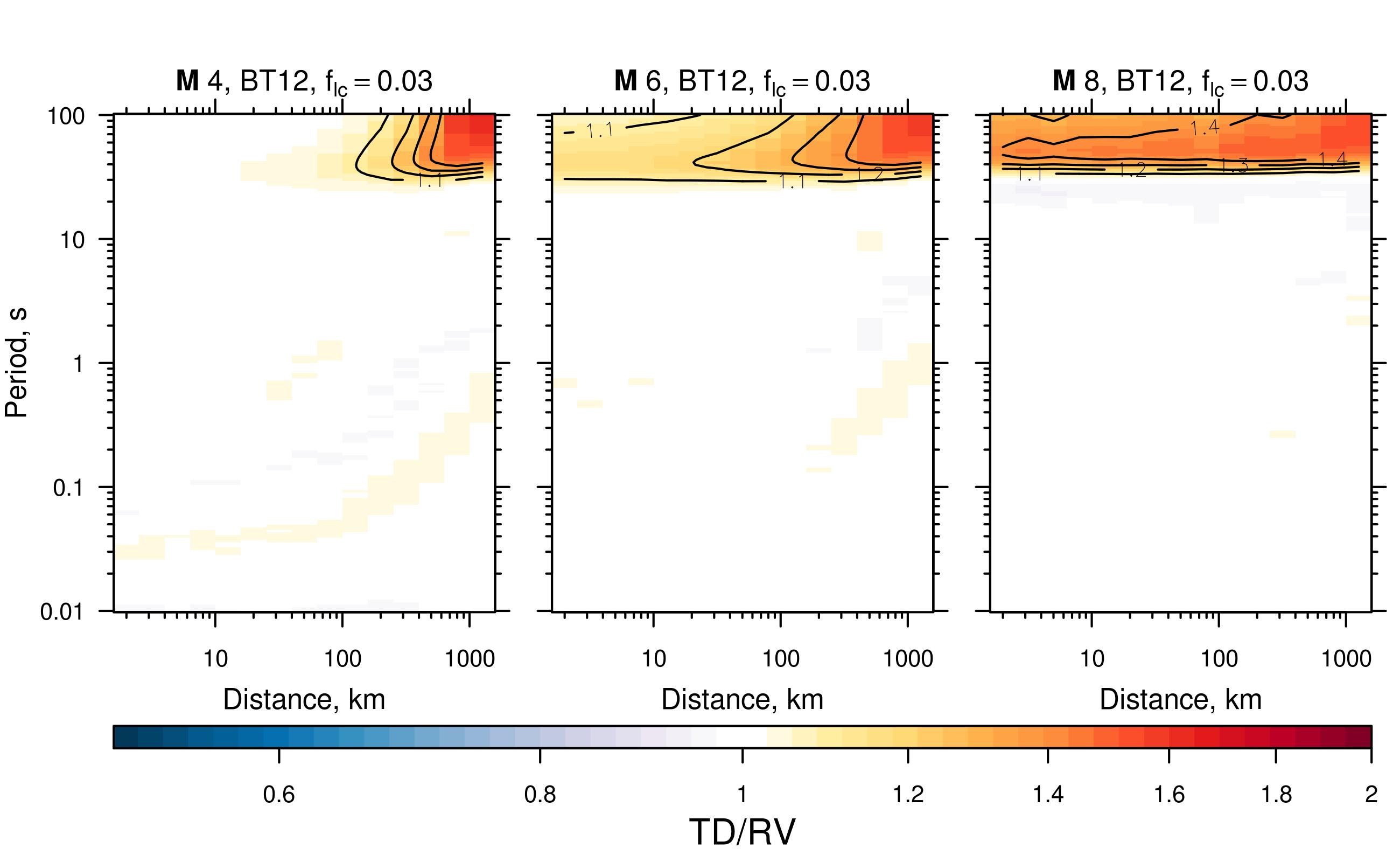

- Figure S8.TD/RV shaded contour plot, WNA SCF,
flc=0.03 Hz.
Drms from BT12 equation, using coefficients from the WNA SCF model.

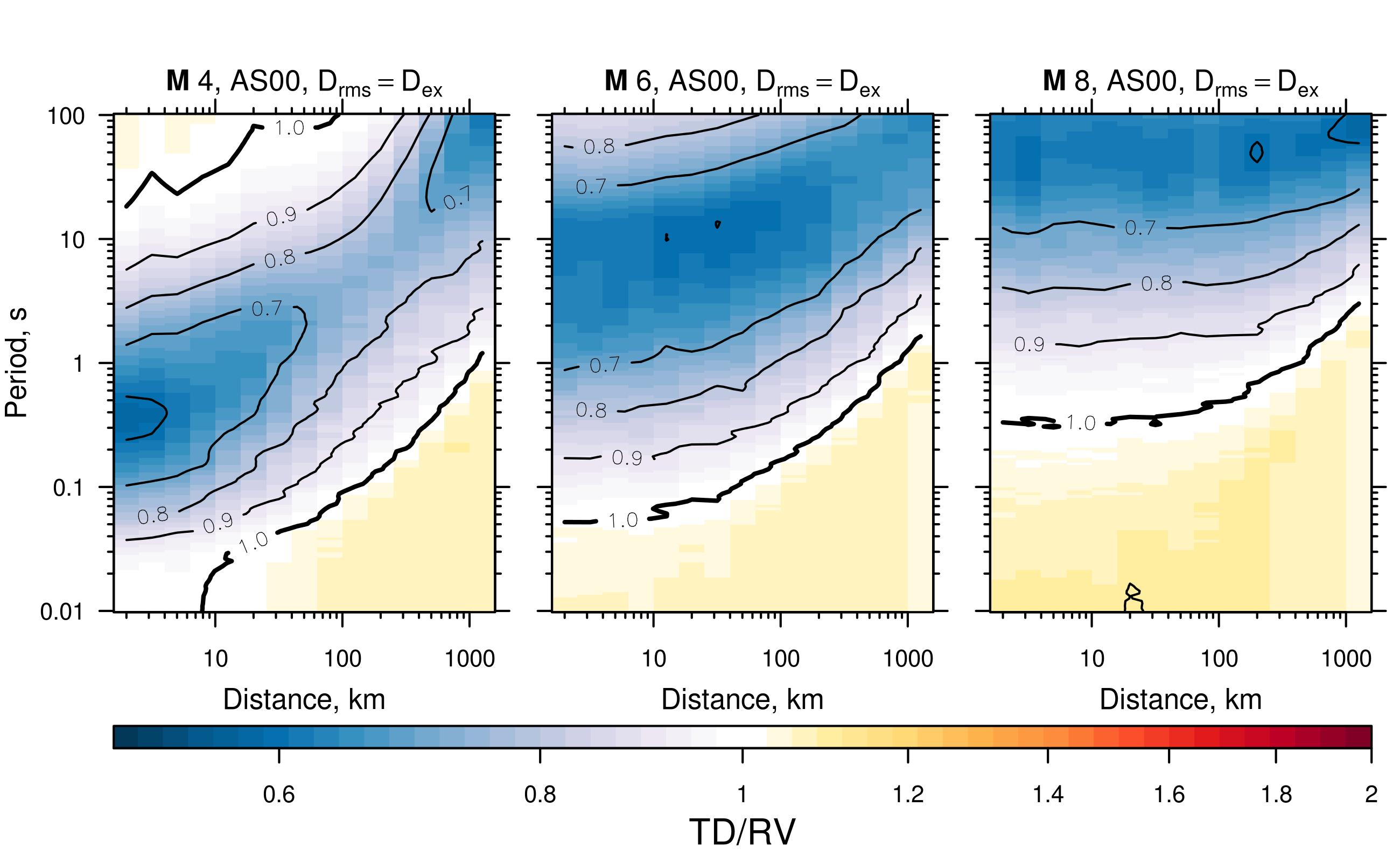

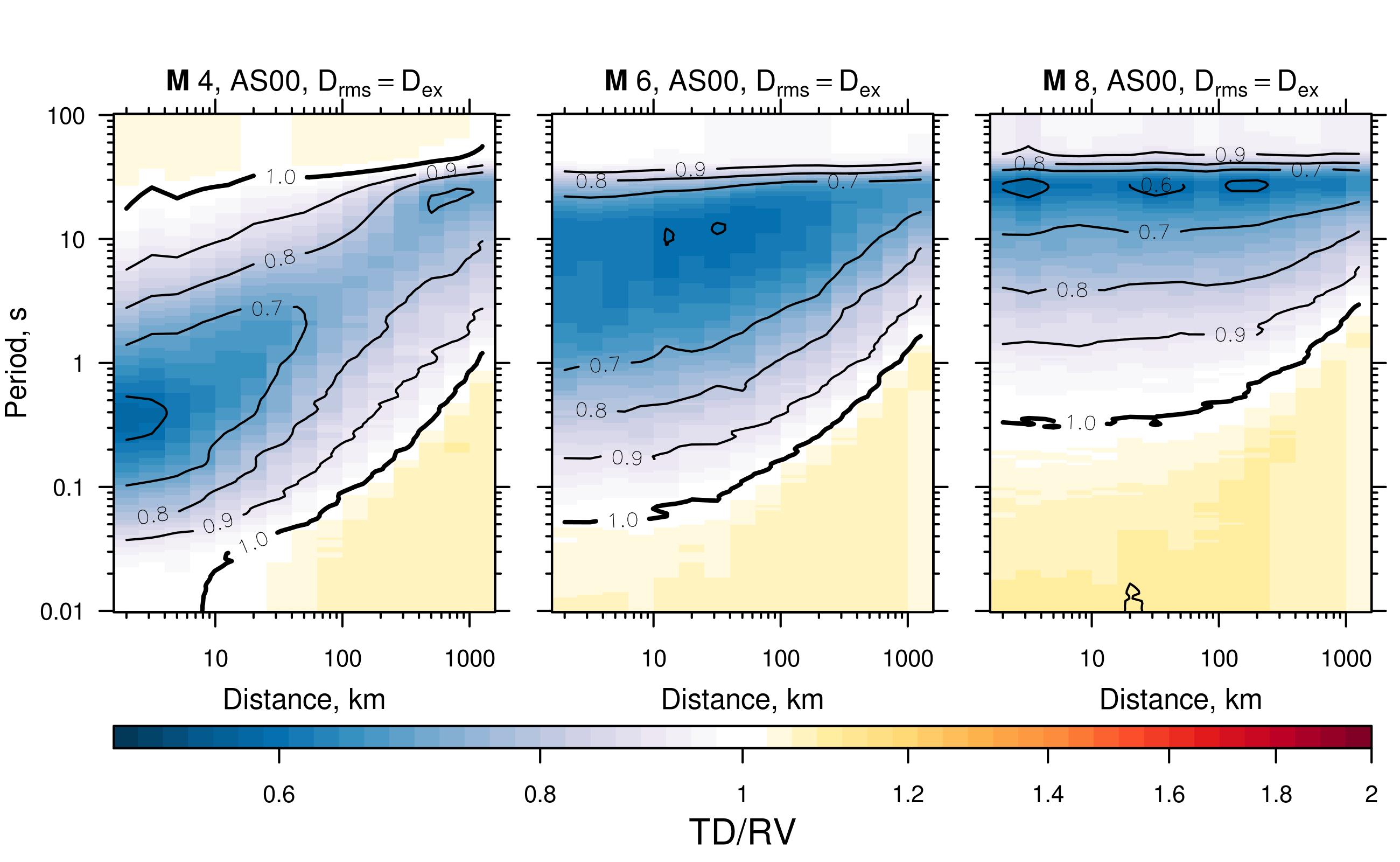

- Figure S9.TD/RV shaded contour plot, WNA AS00, no low-cut,
Drms=Dex.

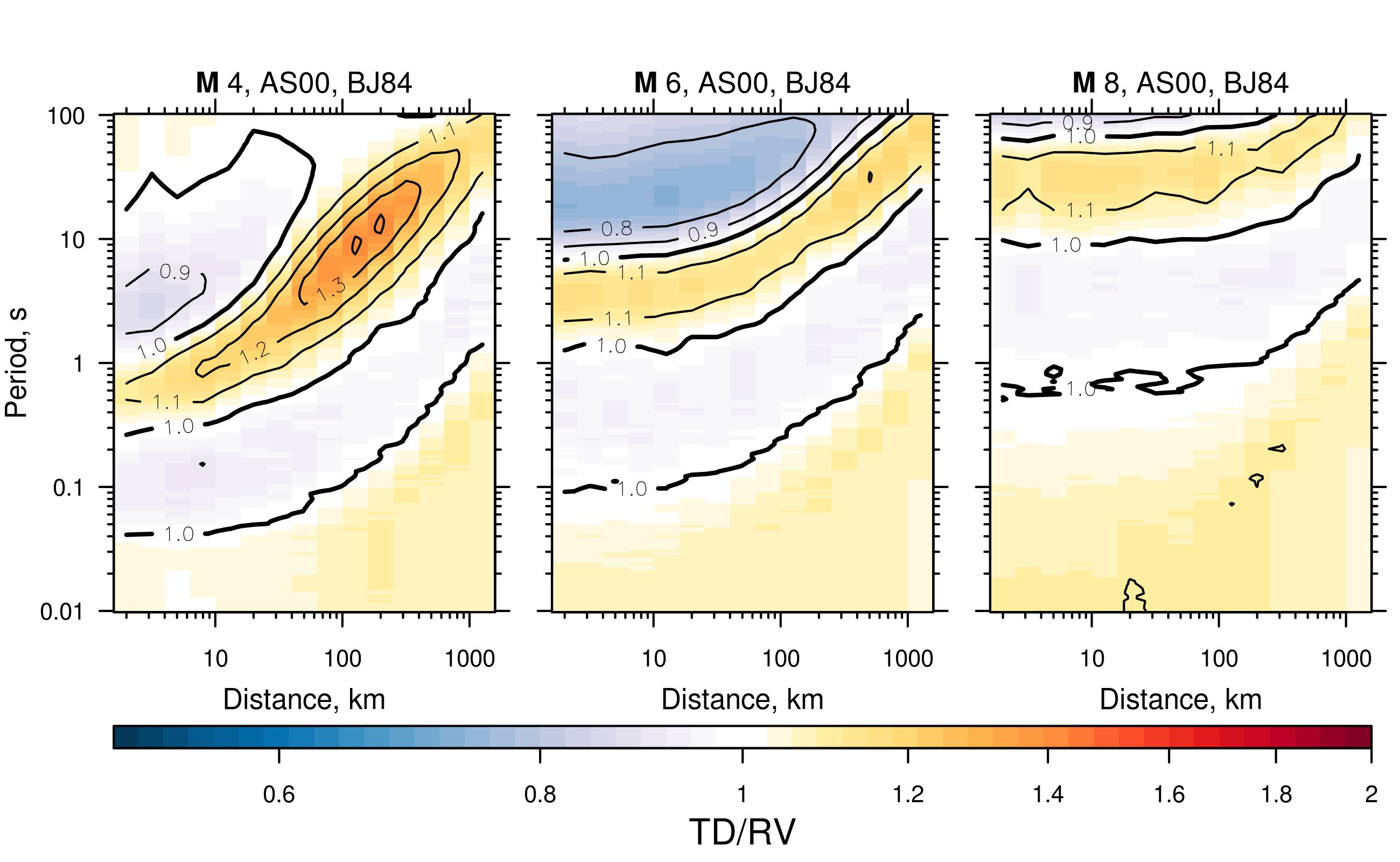

- Figure S10.TD/RV shaded contour plot, WNA AS00, no low-cut,
Drms from BJ84 equation.

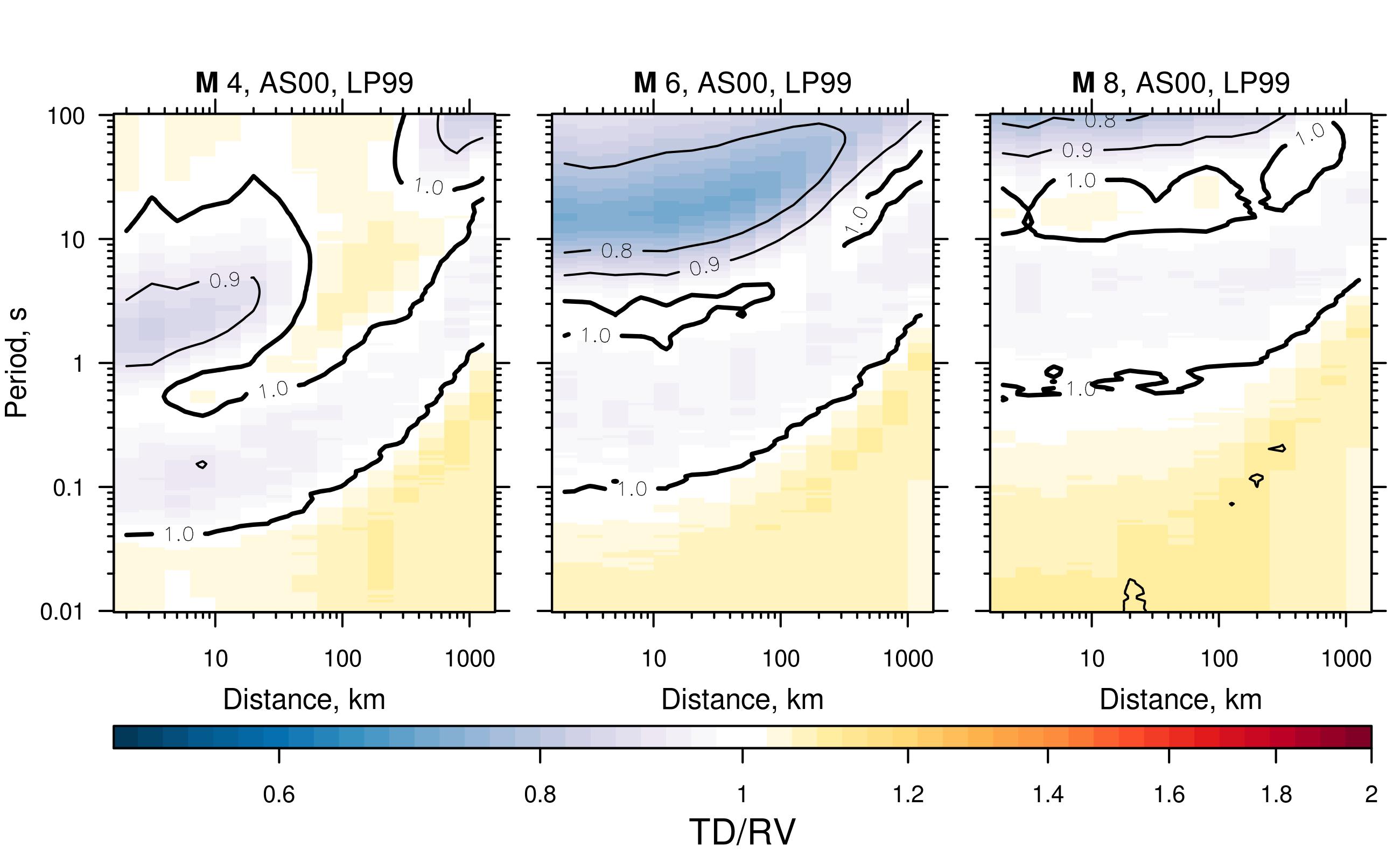

- Figure S11.TD/RV shaded contour plot, WNA AS00, no low-cut,
Drms from LP99 equation.
- Figure S12.TD/RV shaded contour plot, WNA AS00, no low-cut,
Drms from BT12 equation, using coefficients from the WNA SCF model.
- Figure S13.TD/RV shaded contour plot, WNA AS00,
flc=0.03 Hz.
Drms=Dex.

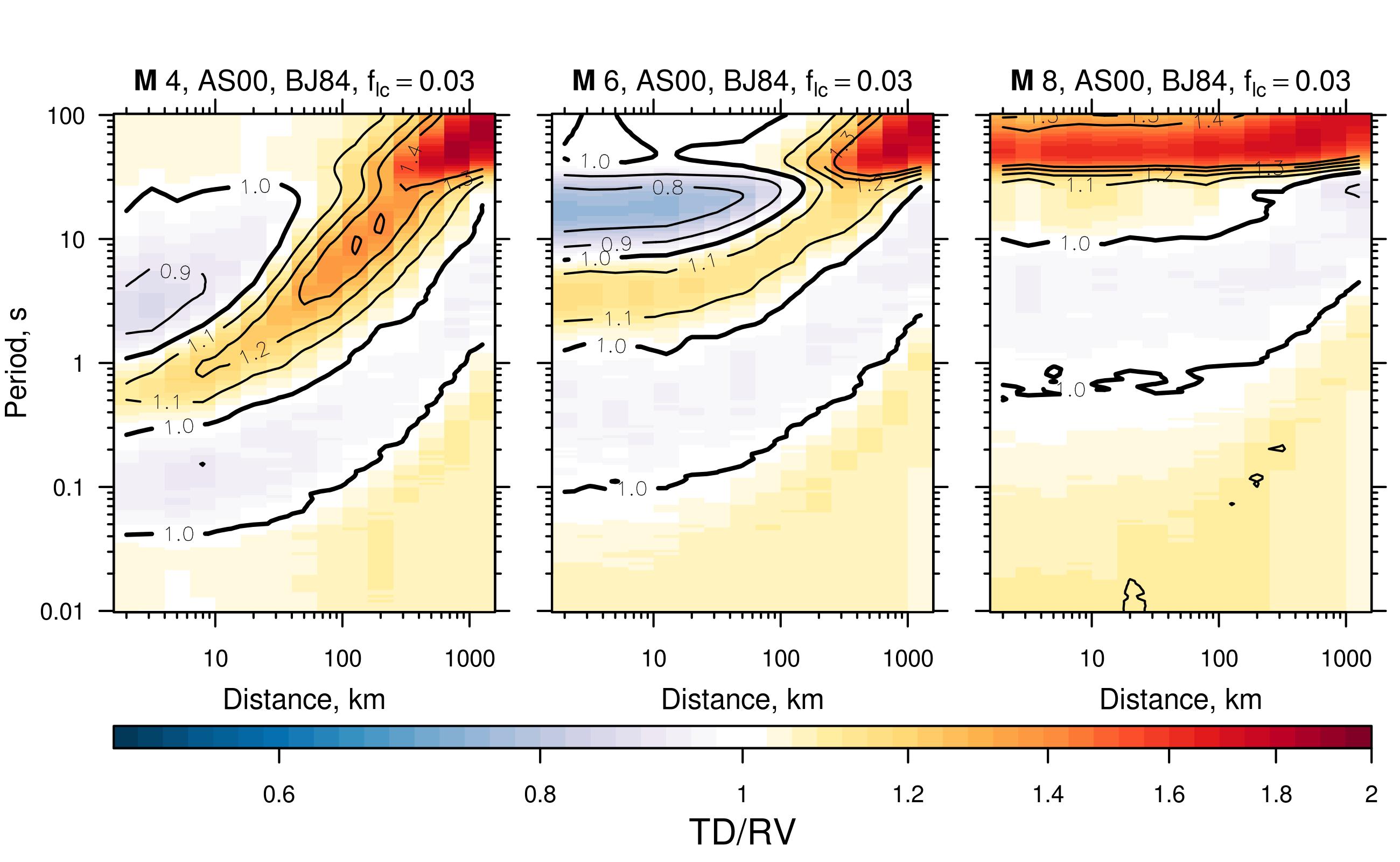

- Figure S14.TD/RV shaded contour plot, WNA AS00,
flc=0.03 Hz.
Drms from BJ84 equation.

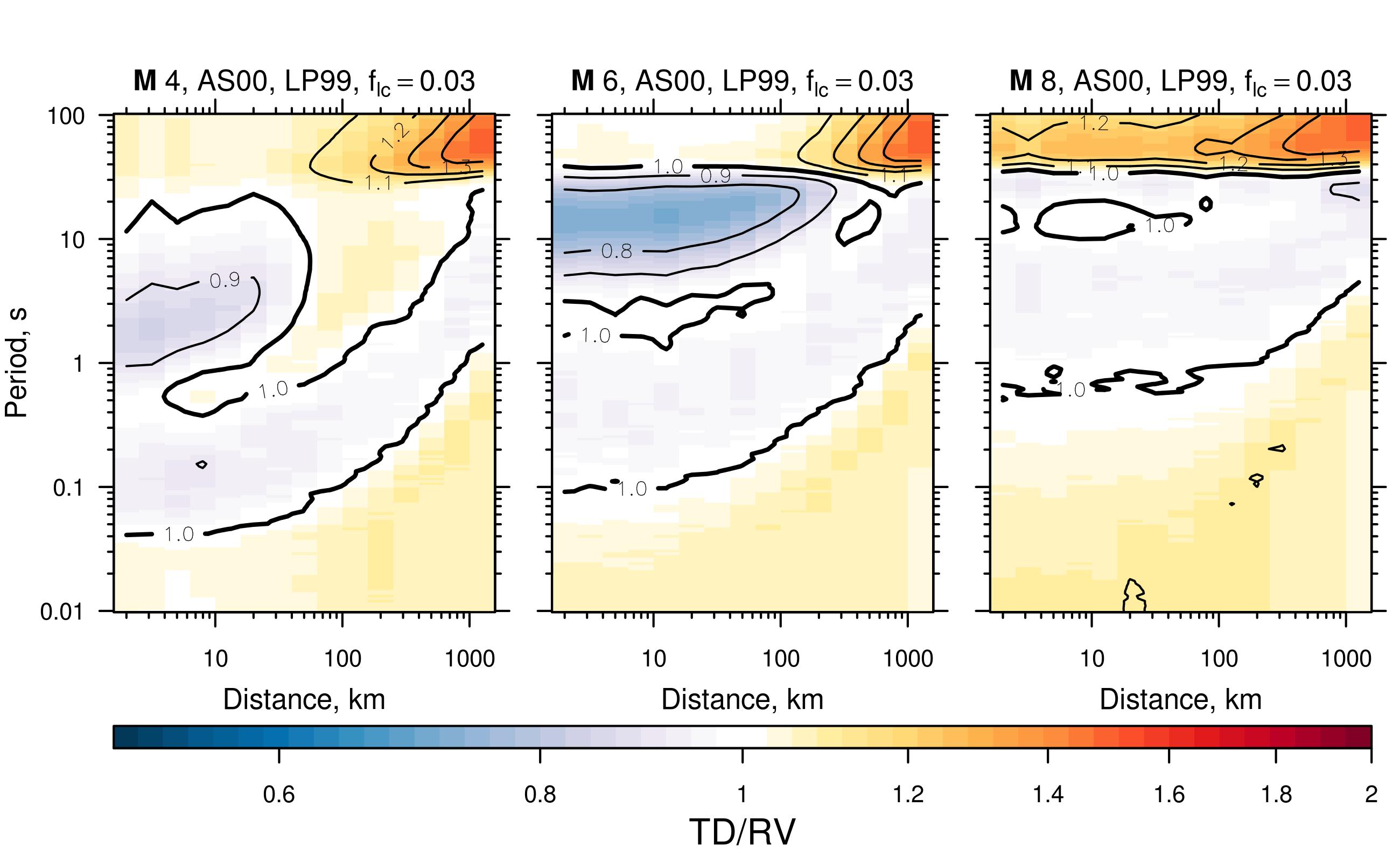

- Figure S15.TD/RV shaded contour plot, WNA AS00,
flc=0.03 Hz.
Drms from LP99 equation.

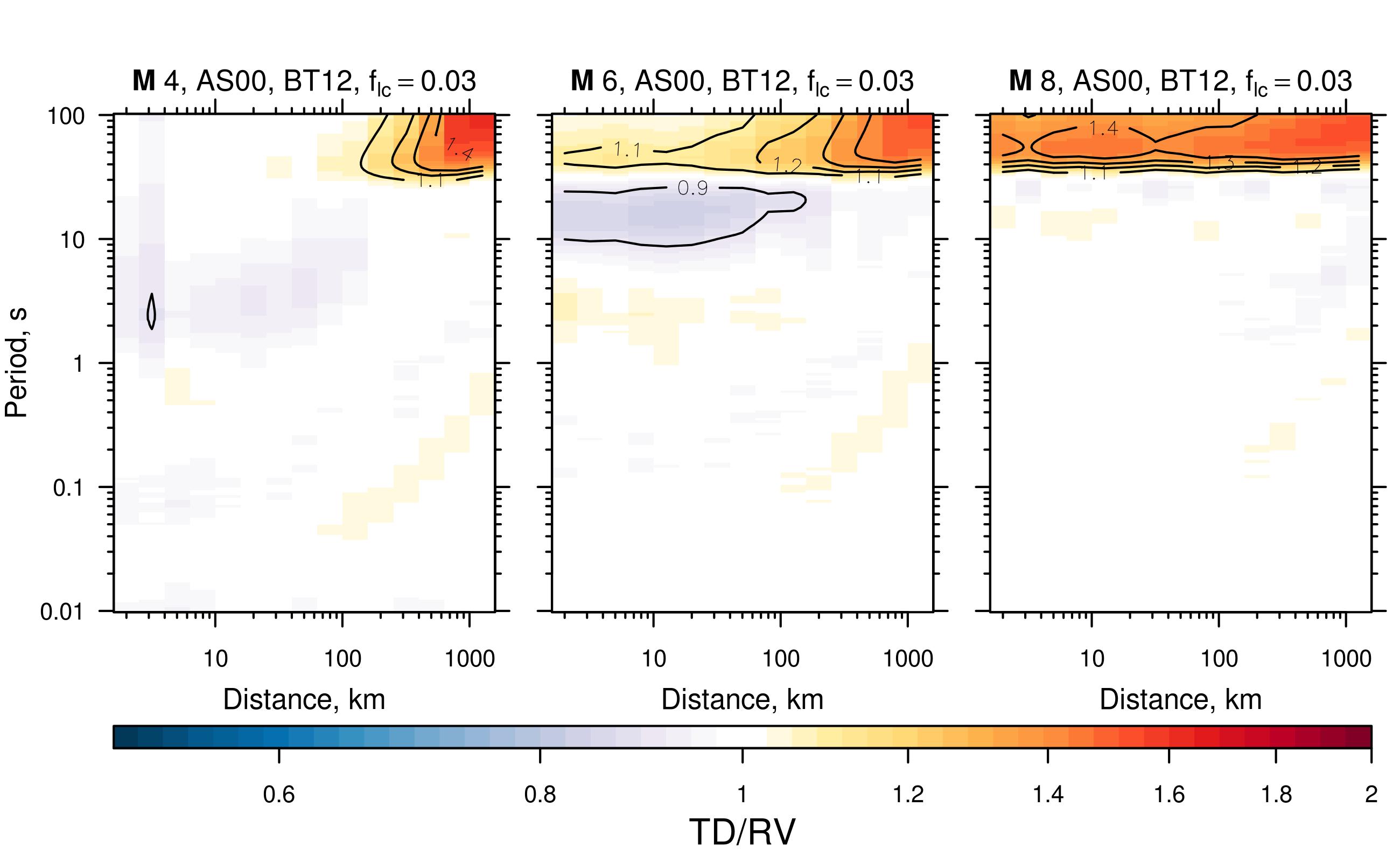

- Figure S16.TD/RV shaded contour plot, WNA AS00,
flc=0.03 Hz.
Drms from BT12 equation, using coefficients from the WNA SCF model.
